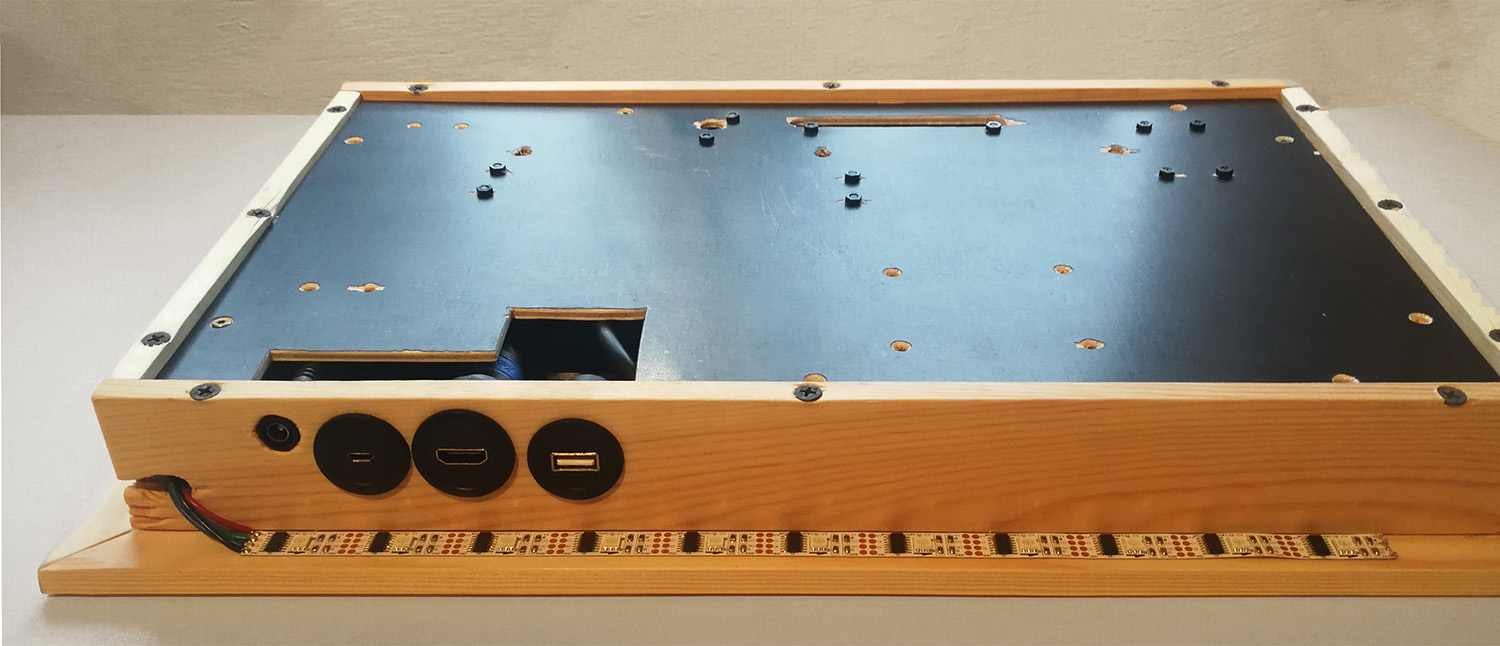

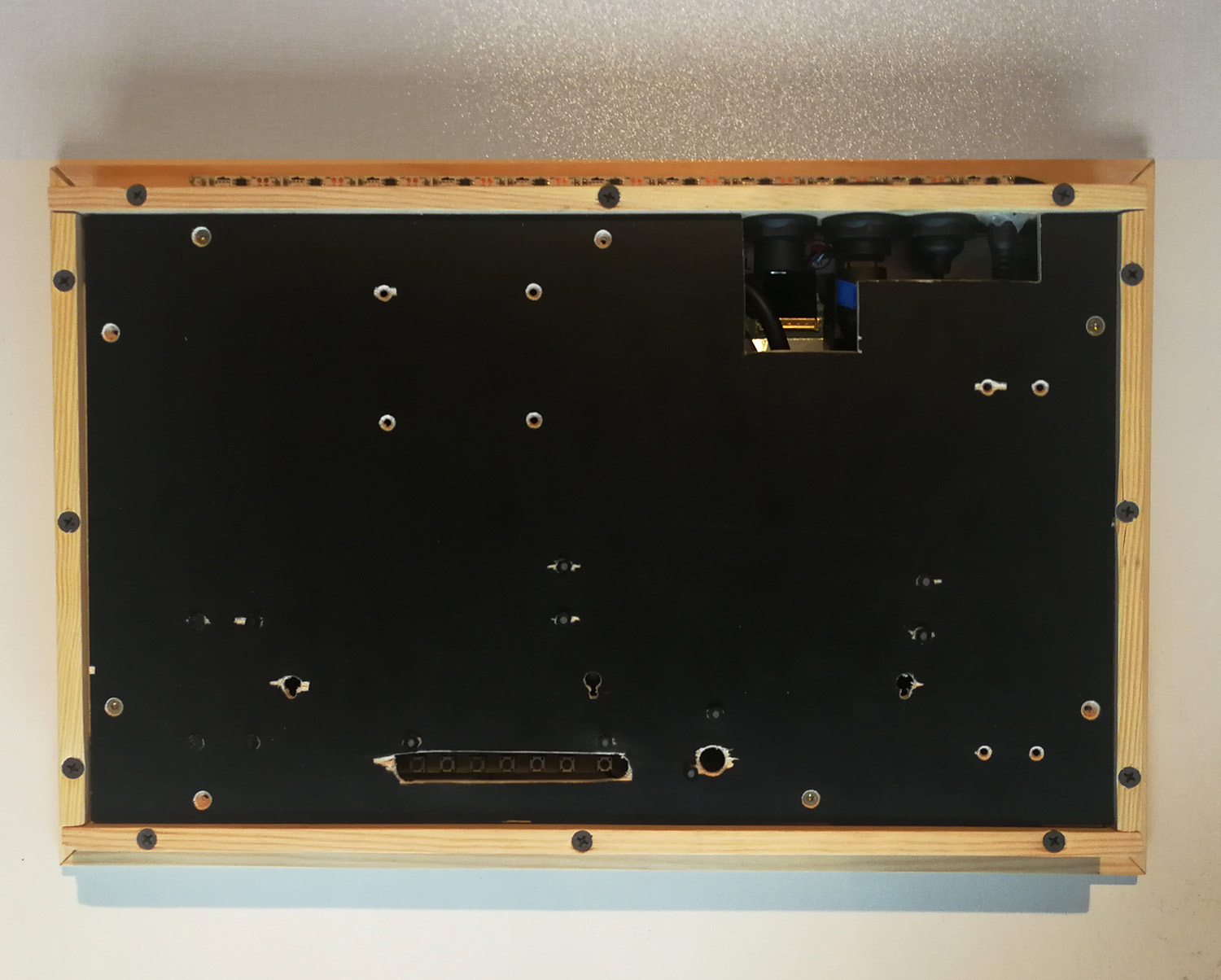

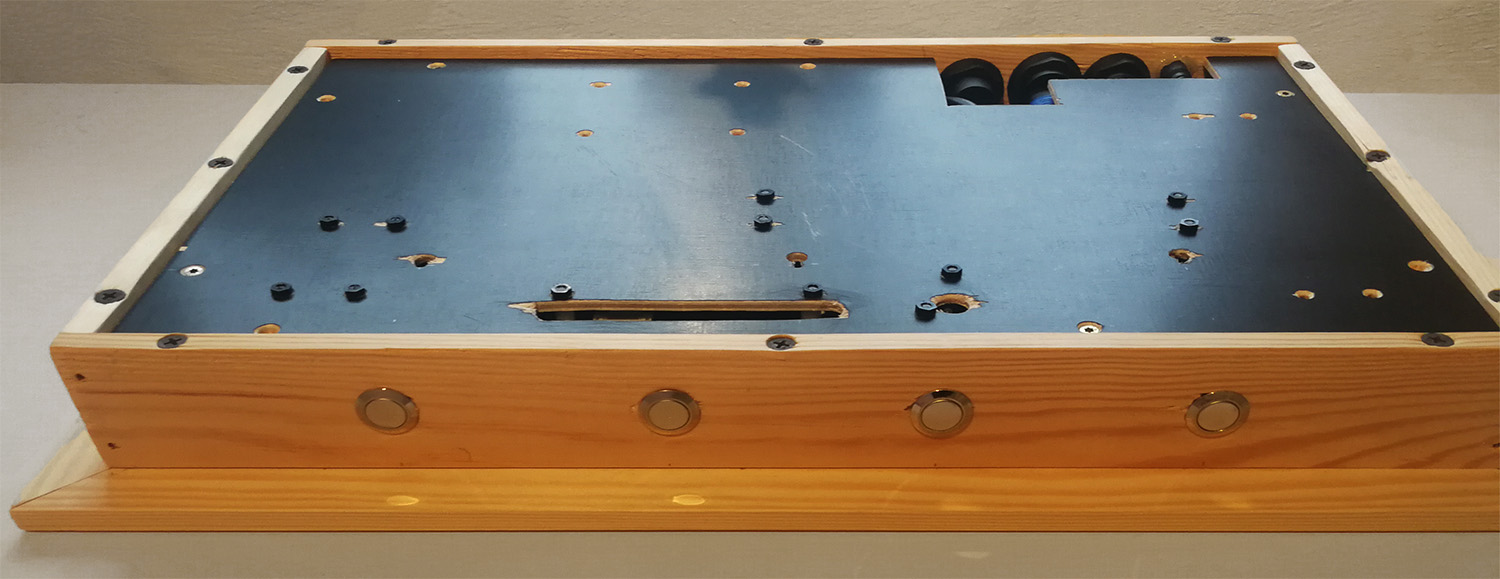

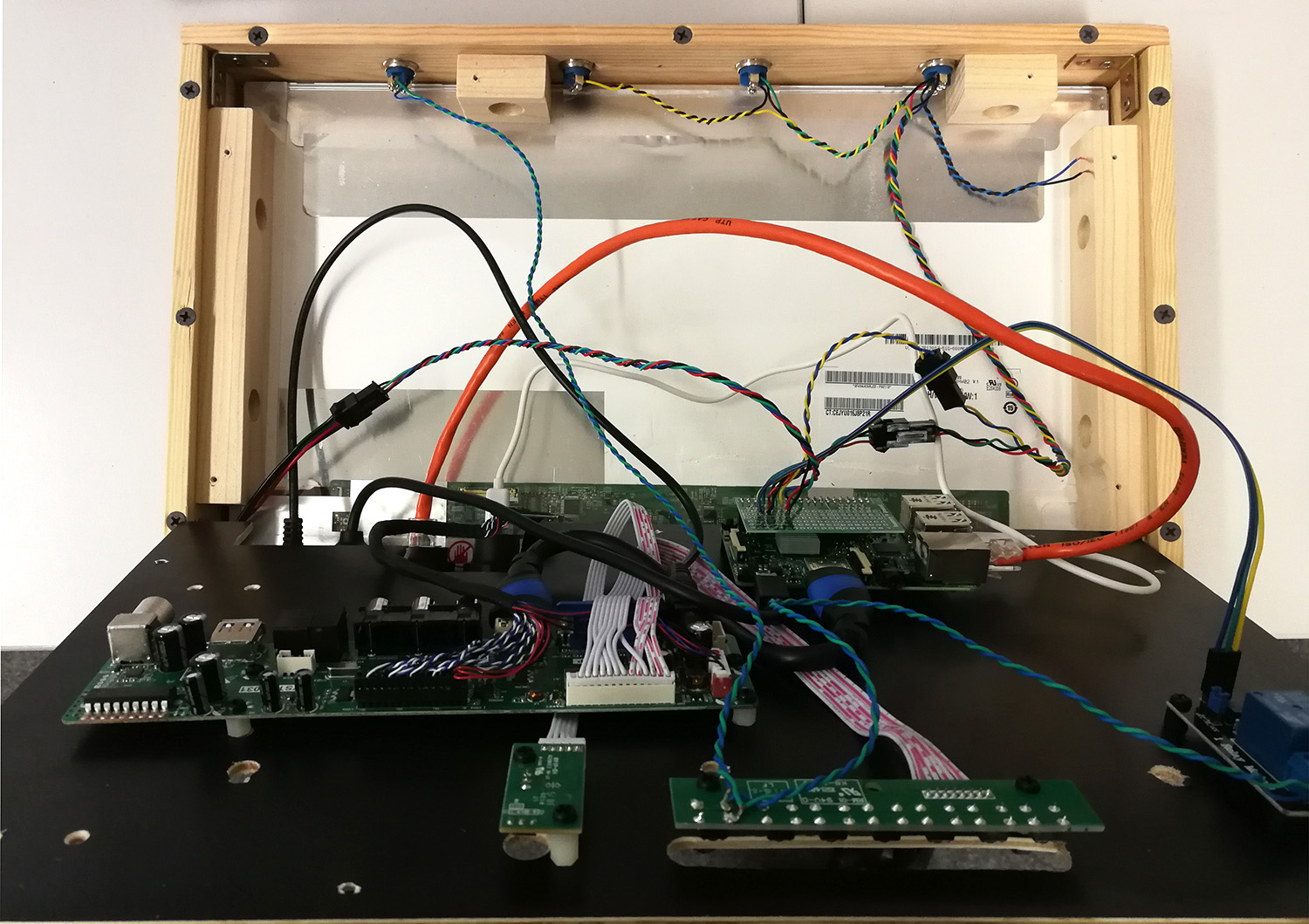

The frame of my MagicMirror is based on the IKEA RIBBA frame which is not matching the dimensions of the display. Unfortunately this is sometimes visible, so I deciced to shrink the frame and match the mirror the size of the display.

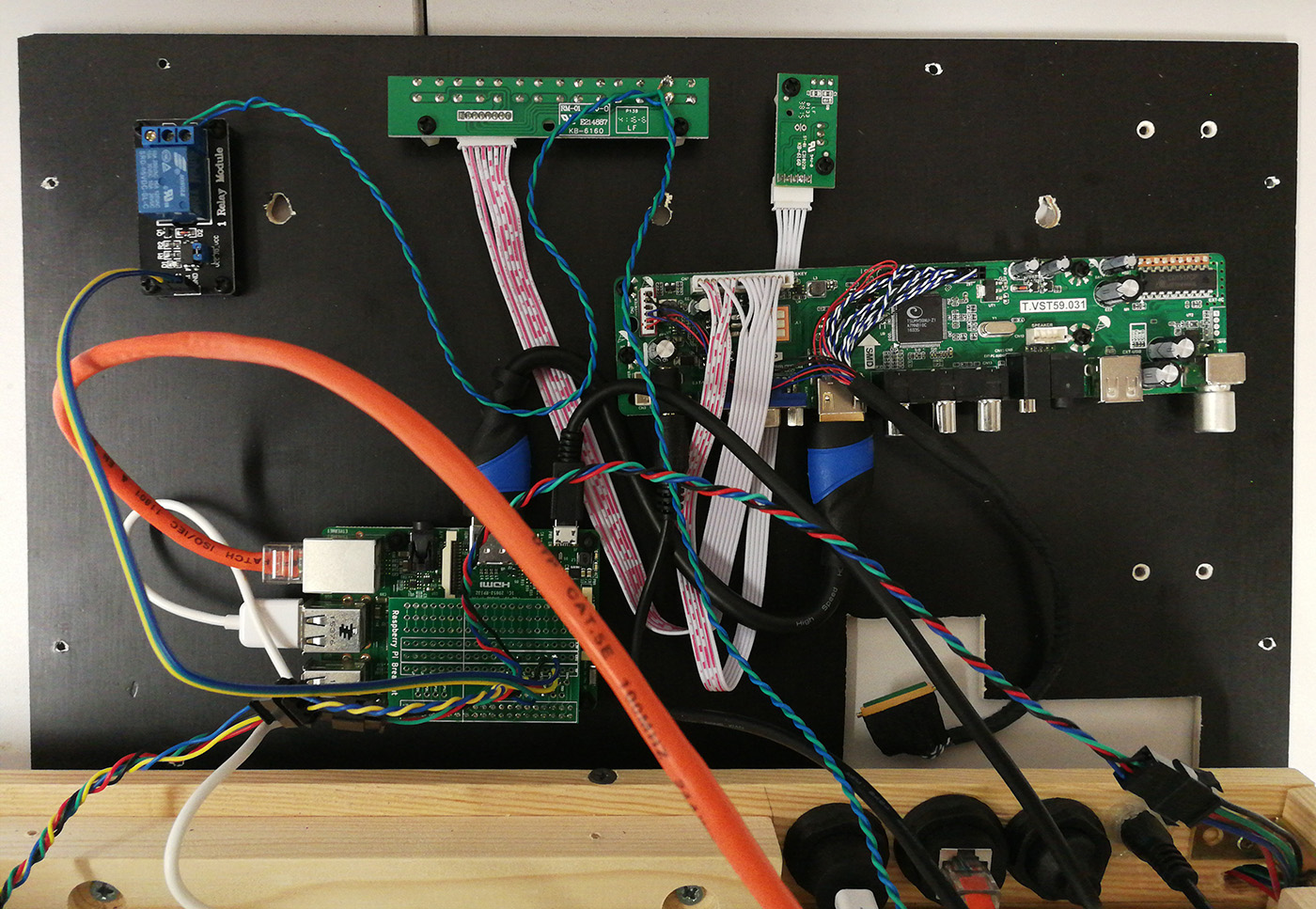

GPIO Mapping
| Description | GPIO | cable color |
|---|---|---|
| Button left | 17 | red |
| Button center | 27 | green |
| Button right | 22 | yellow |
| Relay Power | VCC | yellow |
| Relay Pin | 18 | green |
| Relay Ground | GND | blue |
| WS2801 Power | VCC | red |
| WS2801 CI | SPI0 SCLK | green |
| WS2801 DI | SPI0 MOSI | blue |
| WS2801 Ground | GND | black |
